Seed Crystal Testing Equipment

SC-Seed

contact
资料下载

• Product introduction

• Seed Crystal Inspection Equipment SC-Seed

  Mainly used for seed crystal inspection in photovoltaic crystal pulling workshops, including crack detection, dimension measurement, code recognition, etc., highly efficient and accurate, filling the blind spots of manual inspection.

  Vision Potential · Seed Crystal Inspector

  Seed Crystal Inspector SC-Seed is mainly used for seed crystal inspection in photovoltaic crystal pulling workshops, including crack defect detection, dimension measurement, seed code recognition, etc. The equipment is powerful, efficient, and highly accurate, solving the blind spots of manual crack detection and improving efficiency in the seed crystal stage.

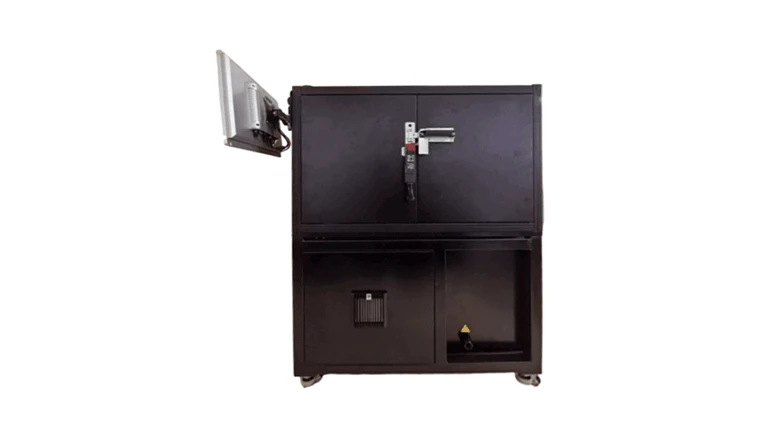

             Device image 1

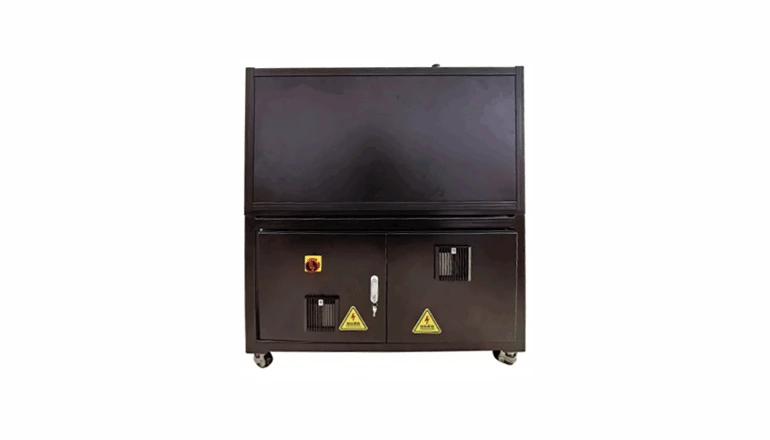

             Device image 2

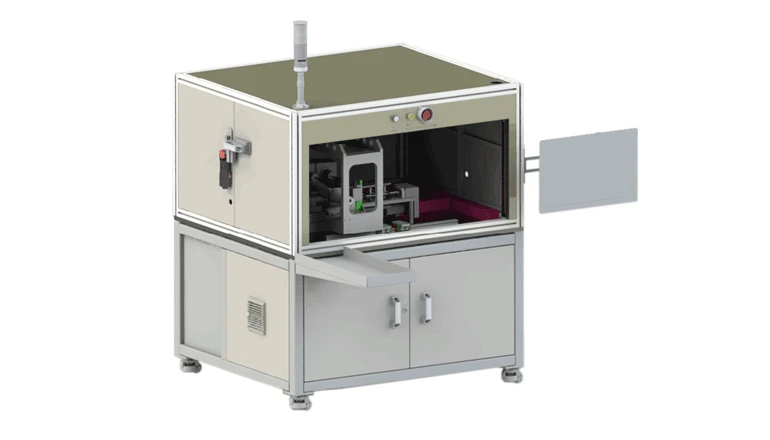

             Device image 3

  Application Scenarios

  01

  100% Inspection / Sampling Inspection Before Seed Shipment

  Detect cracks, surface scratches, edge chipping, dimensional deviations, etc., record quality data, and optimize production processes.

  02

  Incoming Seed Crystal Re-inspection

  Eliminate new defects generated during transportation and storage, reducing production risks.

  03

  Laboratory Seed Quality Assessment

  Provide accurate seed quality data support for new material R&D and special crystal preparation.

  04

  Use in Crystal Pulling Workshop for Ingot Production

  Fast and accurate inspection before loading the seed into the crystal puller, preventing failures such as ingot breakage or polycrystalline inclusions during the pulling process.

  Functions

  ①

  Defect Detection

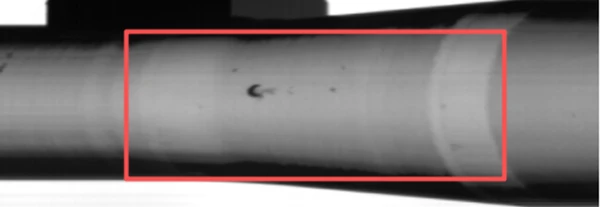

  Detect internal cracks (invisible to the naked eye) and surface defects in seeds: surface cracks, scratches, crescent marks, edge chipping, processing marks, etc.

  ②

  Dimension Measurement

  Precise measurement of large-end diameter, small-end diameter, taper, and length.

  ③

  Seed Code Recognition

  Automatically identify codes on seeds for traceability.

  ④

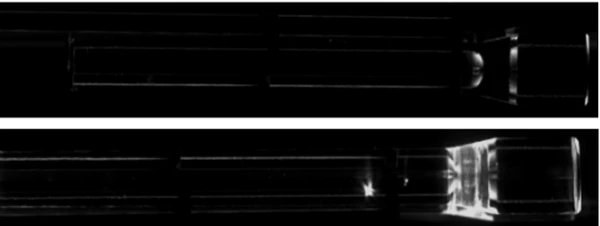

  Seed Stress Analysis

  Analyze internal stress distribution in seeds to prevent breakage during crystal pulling.

  ⑤

  Automatic Feeding Interface

  Reserved interface for automatic feeding to enable automated loading.

  ⑥

  MES Interface

  Reserved MES interface for data upload.

  Technical Advantages

  A

  No Blind Spots in Infrared Detection

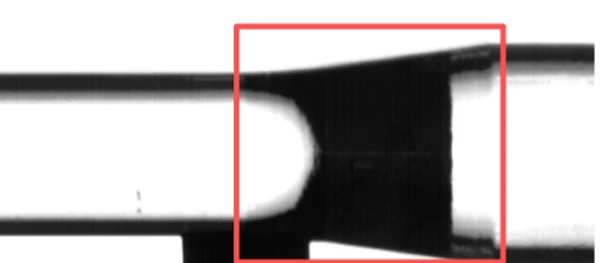

  Adjusts the camera angle to fill the blind spot in the traditional method at the seed's tapered neck, capable of identifying multiple defects.





  B

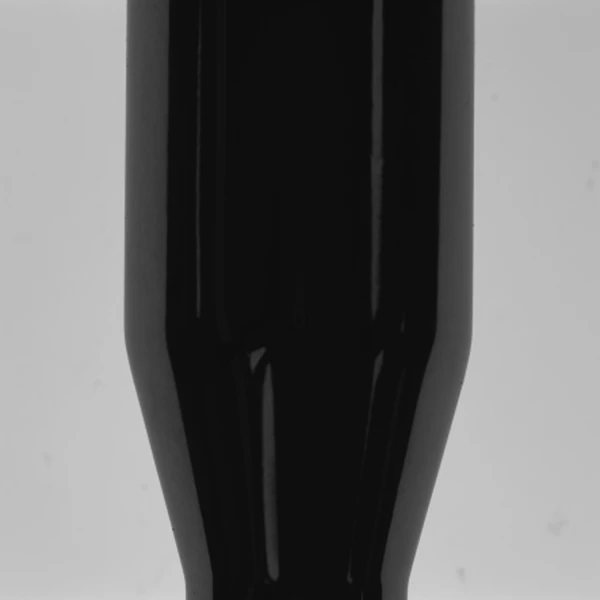

  High-Resolution Camera + High-Parallelism Light Source

  Adopts a parallel optical scheme to eliminate specular reflection, resulting in sharp edges and high dimensional measurement accuracy.





  C

  One-Key Switch Between Pre- and Post-Acid Washing

  The high dynamic range infrared camera easily switches detection modes for both pre- and post-acid washing processes.

  D

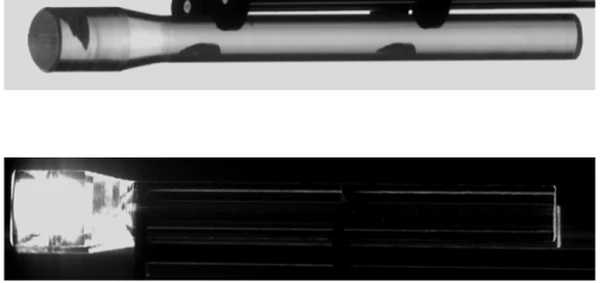

  Proprietary Stress Detection

  Detects stress distribution in seeds to prevent breakage caused by excessive stress during crystal pulling.





  Technical Parameters

  Parameter	Specification
  Model	SC-Seed
  Transmission Camera	1k line scan
  Character Recognition Camera	1280×1024
  Dimension Camera	5120×5120
  Detectable Types	Crack, stress, character recognition, dimension measurement
  Equipment Dimensions	128cm×152cm×161cm
  Infrared Detection Accuracy	0.075mm/pixel
  Dimension Measurement Accuracy	0.009mm/pixel
  Character Detection Accuracy	0.05mm/pixel
  Diameter Detection Range	1-49mm
  Length Detection Range	100mm-300mm
  Test Platform	Windows
  Power Consumption	800W
  Input Voltage	AC 220V
  Computer	DELL
  Monitor	2K touchscreen monitor
  Data Storage	100,000 images
  Inspection Objects	Incoming seeds, outgoing seeds, crystal pulling workshop
  Weight	160kg
  Operating Temperature	-30℃~50℃
  Relative Humidity	≤85%RH

  Application Cases

  Defect Type	Actual Image	Detection Image
  Large-End Crescent Mark	Large-end crescent mark actual	Large-end crescent mark detection
  Large-End Chamfer Chipping	Large-end chamfer chipping actual	Large-end chamfer chipping detection
  Small Pit on Slope	Small pit on slope actual	Small pit on slope detection
  Processing Marks	Processing marks actual	Processing marks detection
  Chamfer Crack	Chamfer crack actual	Chamfer crack detection

  Core Value

  Blind-spot-free infrared detection, high-precision dimension measurement, stress analysis, and code recognition comprehensively ensure seed crystal quality, improve crystal pulling success rates, and reduce production risks.

  Seed Inspection · No Blind Spots · High Precision

  Crack/Stress/Dimension/Code · Infrared/Parallel Light/Stress Analysis

  One-Key Switch Pre/Post Acid Wash            Accuracy 0.009mm/pixel
