SC-IV-Portable Portable IV Tester: Precision Diagnosis for Solar Plant O&M

Introduction: Why IV Curve Testing Is Indispensable for PV O&M

The gap between a solar module's real-world output and its nameplate rating is rarely zero. Micro-cracks, hot spots, degradation, series-parallel mismatch — any of these issues leaves a distinctive fingerprint on the IV curve (current-voltage characteristic). For O&M engineers, a precise, portable IV curve testing instrument is the core tool for rapidly pinpointing underperforming modules, quantifying energy losses, and issuing third-party inspection reports.

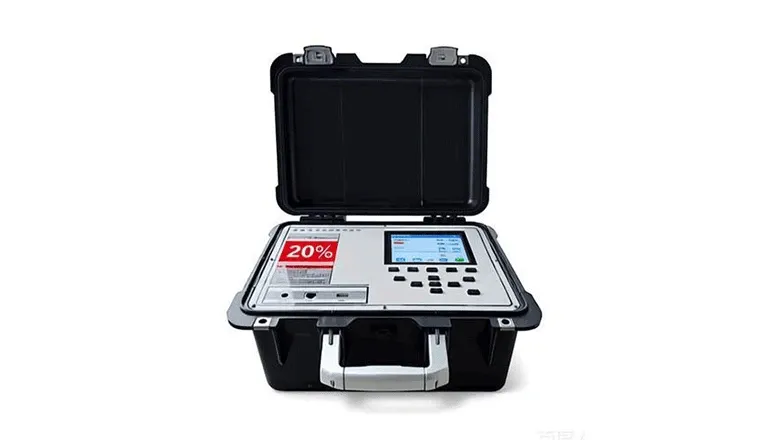

MV Create (势创智能) designed the SC-IV-Portable Handheld IV Tester to meet this need precisely: a single-unit industrial design combining high-accuracy measurement, 8-hour field battery life, and multi-standard compliance.

1. Core Specifications: Covering Mainstream and Large-Scale PV Arrays

SC-IV-Portable leads its class in electrical test range: voltage up to 10V–1500V, current up to 0.01A–20A, and power test range 50W–30kW, covering everything from single modules to multi-string parallel arrays. Voltage accuracy is better than ±0.5%±0.2V; current accuracy better than ±0.5%+0.02A. Each measurement sweep captures 2,048 data points, delivering IV curve resolution far exceeding industry norms. The full test cycle completes in 20 seconds.

2. Field-Ready Design: From Lab to Desert Sites

The bundled high-precision irradiance meter (0–1400 W/m², resolution 1 W/m²) simultaneously logs surface temperature (±1°C), irradiance (better than ±3%), and tilt angle — providing all inputs needed for STC correction (accuracy better than ±5%). The 14.8V/4400mAh swappable lithium battery delivers 8 continuous hours in the field. The 6.5" high-brightness LED touchscreen reads clearly in direct sunlight. Operating temperature range: -10°C to 50°C.

3. Intelligence: Built-in Database and Standard Compliance

The onboard PV module model database covers most major manufacturers; custom models can be added manually. Temperature coefficients are applied automatically for STC conversion. Multiple units can be networked for parallel string comparison, rapidly identifying the worst-performing strings across an array.

SC-IV-Portable fully complies with IEC61215, IEC61646, GB4793.1, IEC60904, and IEC60891, making its data legally valid for third-party measurement, dispute arbitration, insurance claims, and EPC handover reports.

Conclusion

The SC-IV-Portable integrates seamlessly with MV Create's broader PV inspection ecosystem — including Daylight EL and drone EL systems — to provide complete array-level diagnostics from a single vendor.
