Vision Potential Portable Daylight EL Detector: A New Benchmark for All-Weather PV Inspection
Conventional EL testing has long been constrained by nighttime-only operation—technicians working in remote areas under darkness, facing low efficiency and safety risks.Vision Potential’s****portable EL detection deviceSC-DEL-Portablethe SC-DEL-Portable, completely changes this paradigm. As a trueportable PV inspection device****, it integrates all-weather imaging, high-precision defect recognition, and lightweight design, freeing EL testing from time and environmental limitations.
Why Choose Vision Potential Portable EL Detector?

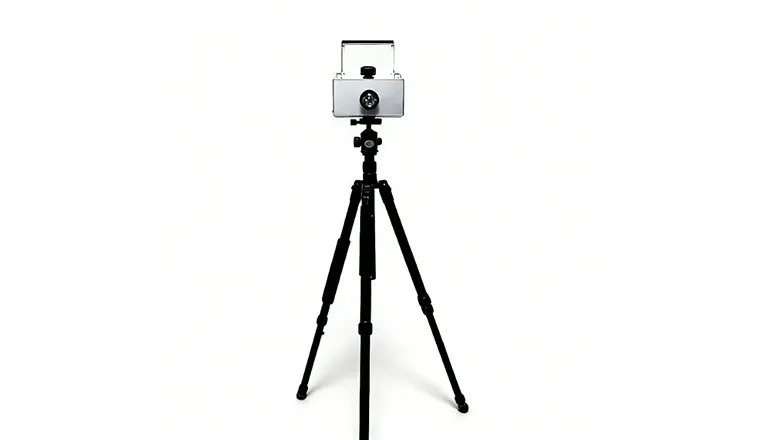

Vision Potential portable EL detection device
Genuine All-Weather Operation – Sunny, Cloudy, or Night
While traditional devices require darkness, thisportable EL detectorfeatures a high-performance infrared sensor and anti-glare technology, delivering clear EL images even under direct sunlight. Whether on a desert, plateau, or rooftop, in sunny, overcast, or drizzling conditions, you can perform inspections anytime, drastically reducing testing cycles.
Broader Detection Scope
- Compatible with monocrystalline (PREC, TOPCON, BC, N-type), polycrystalline, and other module types
- Supports severely damaged or non-conductive modules (via daylight PL mode)
- Identifies cracks, broken grid lines, fragments, soldering defects, virtual soldering, over-etching, low-efficiency cells, mixed grades, and more
Ultra-Portable & Efficient
Weighing only 5kg and supplied with a 2.6m carbon fiber stand, one person can set up quickly. Wired/wireless dual control and 20m remote power switching minimize climbing and moving. Paired with a tablet or all-in-one PC, a single charge covers up to 800 modules at night and 100–600 modules during the day.
Enhanced Safety, Lower Operational Risk
Eliminate nighttime work in mountainous, hilly, or farm environments, protecting staff from wildlife and low temperatures. The device includes reverse current, overload, leakage, electrostatic, and overheat protection, with a constant-current module ensuring stable output regardless of battery level.
Typical Applications
- Power plant inspection**– Rapid screening of installed modules in centralized/distributed plants
- **Incoming material inspection– Batch testing before warehousing to reject defective modules
- **Laboratory testing– Accurate performance evaluation under simulated
- Outdoor experimental testing– Monitoring defect evolution under real-world conditions
Key Technical Specifications
| Parameter | Value |
|---|---|
| IR resolution | 5 megapixels |
| Exposure time | 1ms~10000ms(adapts to light levels) |
| Constant current/voltage | 015A / 060V, accuracy ±1% |
| Battery life (modules) | 800 (night) / 100–600 (day) |
| Operating environment | -30℃~50℃，≤85%RH |
| Device weight | 5kg |
Proven by Real-World Cases
From a 3000m-altitude centralized plant (clear EL images on sunny & cloudy days) to a cracked-glass BC module, a non-conductive N-type string, and indoor simulated sunlight—Vision Potential’s portable daylight EL device has demonstrated outstanding stability and image quality across diverse scenarios.
Conclusion
If you are looking for aportable PV inspection devicethat breaks time constraints, adapts to harsh environments, and is truly easy to carry,Vision Potential’s**portable EL detector****is your ideal choice. It transforms EL testing from a “night-only” task into an all-weather routine, helping you protect your PV assets more safely and efficiently.
